Description: Han D R15 stift-c 1 mm Ag AWG18 Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 10 A Series: Han D® Contact resistance: <= 3 mOhm Wire cross section: 1 mm2 Wire gauge AWG: AWG 18 Stripping length: 8 mm Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 0.66 g Specification: IEC 60664-1//IEC 61984 Diameter of drilling hole: 1.45 mm

Contacto Macho HAN-D 1,5mm

0,90 €

Description: R 15-STI-C-1,5 QMM-AWG16 Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 10 A Series: Han D® Contact resistance: <= 3 mOhm Wire cross section: 1.5 mm2 Wire gauge AWG: AWG 16 Stripping length: 8 mm Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 0.66 g Specification: IEC 60664-1//IEC 61984 Diameter of drilling hole: 1.75 mm

Contacto Macho HAN-D 0,5mm

0,90 €

Description: R 15-STI-C-0,5 QMM-AWG 20 Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 10 A Series: Han D® Contact resistance: <= 3 mOhm Wire cross section: 0.5 mm2 Wire gauge AWG: AWG 20 Stripping length: 8 mm Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 0.68 g Specification: IEC 60664-1,IEC 61984 Diameter of drilling hole: 1.1 mm

Contacto hembra 0,5 MM. HAN E

0,44 €

Description: Han E F Crimp Contact Ag 0.5 mm/20AWG Gender: female RoHS conformity: Yes Type of contact: Crimp contact Rated current: 16 A Han E® Contact resistance: <= 1 mOhm Wire cross section: 0.5 mm2 Wire gauge AWG: AWG 20 Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 1.51 g

Contacto hembra HAN-E 1mm.

0,44 €

Description: Han E F Crimp Contact Ag 1,0 mm²/18AWG Gender: female RoHS conformity: Yes Type of contact: Crimp contact Rated current: 16 A Series: Han E® Contact resistance: <= 1 mOhm Wire cross section: 1 mm2 Wire gauge AWG: AWG 18 Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 1.48 g

Contacto macho,D-SUB AWG 20-24 PL1 0,33-0,52

0,36 €

Description: D-Sub, MA AWG 20-24 crimp cont Application: Contact Gender: male Gender: Turned Male Contact Performance level: PL1 RoHS conformity: Yes Termination Type: Crimp Type of contact: Han® D-Sub crimp contact Contact info: turned contacts Wire cross section, min.: 0.25 mm2 Wire cross section, max.: 0.52 mm2 Wire gauge AWG, min.: AWG 24 Wire gauge AWG, max.: AWG 20 Net Weight: 0.18 g Packaging: 100 pcs bulk Series: D-Sub Mixed Stripping length, max.: 4 mm

Contacto Macho HAN-D 0,14-0,37mm

0,90 €

Description: R 15-STI-C-0,14-0,37 QMM-AWG26-22 Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 10 A Series: Han D® Contact resistance: <= 3 mOhm Stripping length: 8 mm Wire cross section, min.: 0.14 mm2 Wire cross section, max.: 0.37 mm2 Wire gauge AWG, min.: AWG 26 Wire gauge AWG, max.: AWG 22 Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 0.71 g Specification: IEC 60664-1//IEC 61984 Diameter of drilling hole: 0.9 mm

Contactos macho Pot. 1mm.

0,40 €

Description: Han E M Crimp Contact Ag 1,0 mm/18AWG Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 16 A Series: Han E® Contact resistance: <= 1 mOhm Wire cross section: 1 mm2 Wire gauge AWG: AWG 18 Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 1.27 g

Contacto macho 0,75 MM

0,47 €

Description: Han E M Crimp Contact Ag 0.75 mm/18AWG Gender:male RoHS conformity:Yes Type of contact:Crimp contact Rated current:16 A Series:Han E® Contact resistance: <= 1 mOhm Wire cross section:0.75 mm2 Wire gauge AWG:AWG 18 Material, contact:copper alloy Surface, contacts: silver plated contacts Net Weight:1.32 g

SKINDICHT E PG11, Anillo de Junta Adaptable

0,12 €

Contacto macho 2,5mm.

0,40 €

Description: Han E M Crimp Contact Ag 2.5 mm / 14AWG Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 16 A Series: Han E® Contact resistance: <= 1 mOhm Wire cross section: 2.5 mm2 Wire gauge AWG: AWG 14 Material, contact: copper alloy silver plated contacts Net Weight: 1.32 g

Conector Crimp VERSATIL-LINK azul

0,60 €

Contacto macho 0,5 MM. HAN E

0,40 €

Description: Han E M Crimp Contact Ag 0.5 mm/20AWG Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 16 A Series: Han E® Contact resistance: <= 1 mOhm Wire cross section: 0.5 mm2 Wire gauge AWG: AWG 20 Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 1.31 g

Contacto macho D-Sub N3 0,25-0.56mm

0,09 €

Description: DSUB LOOSE PART CRIMP CONTACT Application: Contact Gender: male Gender: Stamped Male Contact Performance level: PL3 RoHS conformity: Yes Termination Type: Crimp Type of contact: Han® D-Sub crimp contact Contact info: stamped contacts Wire cross section, min.: 0.25 mm2 Wire cross section, max.: 0.56 mm2 Wire gauge AWG, min.: AWG 24 Wire gauge AWG, max.: AWG 20 Material, contact: copper alloy Net Weight: 0.13 g Packaging: 500 pcs bulk Series: D-Sub Standard

Contacto H., D-SUB AWG 20-24 PL1 0,33-0,52

0,80 €

Description: D-Sub, FE AWG 20-24 crimp cont Application: Contact Gender: female Gender: Turned Female Contact Performance level: PL1 RoHS conformity: Yes Termination Type: Crimp Type of contact: Han® D-Sub crimp contact Contact info: turned contacts Wire cross section, min.: 0.25 mm2 Wire cross section, max.: 0.52 mm2 Wire gauge AWG, min.: AWG 24 Wire gauge AWG, max.: AWG 20 Net Weight: 0.25 g Packaging: 100 pcs bulk Series: D-Sub Standard Stripping length, max.: 4 mm

Contacto hembra E 0,75 MM CRIMP

0,52 €

Description:Han E F Crimp Contact Ag 0.75mm/18AWG Gender:female RoHS conformity:Yes Type of contact:Crimp contact Rated current:16 A Series:Han E® Contact resistance: <= 1 mOhm Wire cross section: 0.75 mm2 Wire gauge AWG:AWG 18 Material, contact:copper alloy Surface, contacts:silver plated contacts Net Weight:1.49 g

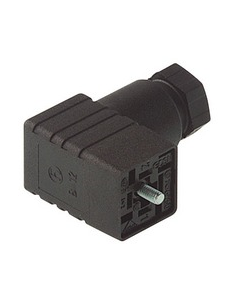

GDSN 307 negro, conector tipo C, (DIN 43650)

1,11 €

Contacto hembra HAN-E 1,5mm

0,44 €

Description: Han E F Crimp Contact Ag 1.5 mm/16AWG Gender: female RoHS conformity: Yes Type of contact: Crimp contact Rated current: 16 A Series: Han E® Contact resistance: <= 1 mOhm Wire cross section: 1.5 mm2 Wire gauge AWG: AWG 16 Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 1.53 g

RSKF 8, Tuerca M8x0,5

0,32 €

114-A4 24V AC 1, RELE KUHNKE

3,38 €

Contacto neumatico macho 4mm.

3,89 €

Description: Pneumatic contact male 4,0 mm Gender: male Operating pressure: 8 bar / 116 psi RoHS conformity: Yes Type of contact: Pneumatic contact Series: Han-Modular® Tube internal diameter: 4.0 mm / 1/8" Contact info: without shut off Material, contact: delrin acetal Material, seal: Buna-N Net Weight: 24.4 g

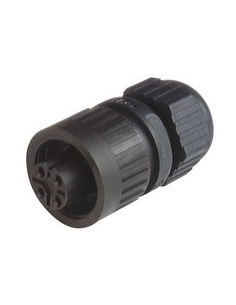

CA 3 LD, Conector hembra

6,10 €

Description: Straight cable socket, integrated strain relief Type: CA 3 LD Order No: 934 125-100 Number of contacts: 3 + PE Cable gland:M 22x2 Cable diameter: 6 mm to 12 mm Conductor size: max. 2.5 mm2 Housing Color: black Pin dimensions: 2 mm Rated voltage: AC 400 V / DC 250 V Rated current: DC 10 A / AC 16 A Contact resistance: <= 3 mOhm Type of termination: screw Contact surface material: Ag Contact bearer material: PA 66-GF 25 Housing material: PA 66-GF 25 O-Ring: NBR Protection class (IEC 60529): IP 67 Pollution severity: 3 Temperature range: -40 °C to +90 °C Flammability UL standard: 94 V-0 Approvals:UL//VDE

114-A4 230V AC 1, RELE KUHNKE

3,60 €

Contacto Macho HAN-E 1,5mm

0,40 €

Description: Han E M Crimp Contact Ag WG 16AWG Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 16 A Series: Han E® Contact resistance: <= 1 mOhm Wire cross section: 1.5 mm2 Wire gauge AWG: AWG 16 Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 1.32 g

Pasa muros PG 13,5, 2P+T Faston

7,22 €

SKINTOP ST-M 20x1,5, Prensaestopas gris RAL 7001

0,74 €

Codificador macho

0,49 €

Contacto H.D-Sub N3 0,25-0,56mm.

0,09 €

Description: DSUB FE CR KON AWG20-24 AFS3 EINZ Application: Contact Gender: female Gender: Stamped Female Contact Performance level: PL3 RoHS conformity: Yes Termination Type: Crimp Type of contact: Han® D-Sub crimp contact Contact info: stamped contacts Wire cross section, min.: 0.25 mm2 Wire cross section, max.: 0.56 mm2 Wire gauge AWG, min.: AWG 24 Wire gauge AWG, max.: AWG 20 Material, contact: copper alloy Net Weight: 0.14 g Packaging: 500 pcs bulk Series: D-Sub Standard

Contacto macho HAN Q5/0 para PCB

1,64 €

GMD 3011 J Negro

1,22 €

Contacto Macho HAN-D 2,5mm

0,90 €

Description: Han D R15 stift-c 2,5 mm Ag Gender: male RoHS conformity: Yes Type of contact: Crimp contact Rated current: 10 A Series: Han D® Contact resistance: <= 3 mOhm Wire cross section: 2.5 mm2 Wire gauge AWG: AWG 14 Stripping length: 6 mm Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 0.66 g Specification: IEC 60664-1//IEC 61984 Diameter of drilling hole: 2.25 mm

Codificador hembra

0,60 €

STASI 3, clip metálico

0,44 €

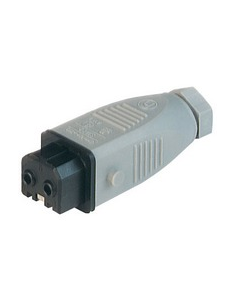

STAK 2, Conector hembra gris

3,70 €

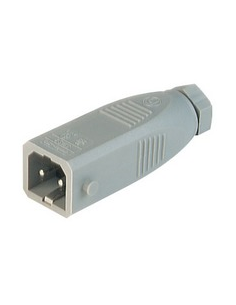

STAS 2, Conector macho gris

3,65 €

Contacto hembra dorado HAN-D 0,5mm.

1,14 €

Contacto macho dorado HAN-E 1,00mm.

2,19 €

Contacto hembra HAN-D 1mm.

0,91 €

Description: Han D F Crimp Contact Ag AWG 18 Gender: female RoHS conformity: Yes Type of contact: Crimp contact Rated current: 10 A Series: Han D® Contact resistance: <= 3 mOhm Wire cross section: 1 mm2 Wire gauge AWG: AWG 18 Stripping length: 8 mm Material, contact: copper alloy Surface, contacts: silver plated contacts Net Weight: 0.66 g Specification: IEC 60664-1//IEC 61984 Diameter of drilling hole: 1.45 mm

Contacto macho HAN E 3 mm

0,42 €

114-A4 24V DC 1, RELE KUHNKE

3,20 €

Tuerca fijación plastico PG 13.5

0,61 €

STAS 3 N, Conector M. Gris

4,15 €

Description: Cable plug with strain relief Type: STAS 3 N grau/grey Order No: 932 143-106 Type of contact: male Number of contacts: 3 + PE Cable gland: PG 11 Cable diameter: 6 mm to 10 mm Conductor size: max. 1.5 mm2 Housing Color: grey Contact bearer: color black Pin dimensions: 2 mm Rated voltage: AC 400 V / DC 250 V Rated current: DC 10 A / AC 16 A Contact resistance: <= 5 mOhm Type of termination: screw Contact material: Cu Zn Contact surface material: Sn Contact bearer material: PA Housing material: PA Protection class (IEC 60529): IP 54 Pollution severity: 3 Temperature range: -30 ºC to +90 ºC Housing UL: 94 HB Contact bearer: UL 94 V-0 Approvals:UL UL//VDE VDE//SEV SEV

Contacto hembra HAN E 3 mm

0,47 €

RJI RJ45 GL Compact plug Cat.6A, 8p (Ud)

2,25 €

Category: Connector Series: HARTING RJ Industrial Element: Cable connector Termination method: Piercing termination Termination method: Piercing termination Shielding: Fully shielded, 360° shielding contact Number of contacts: 8 Package: 1 unit Conductor cross-section: AWG 24 ... AWG 28 Stranded Wire outer diameter: 1.05 mm Limiting temperature: -40 ... +70 °C Mating cycles: = 750 Degree of protection acc. to IEC 60529: IP20 Cable diameter: 5 ... 6.5 mm Transmission characteristics: Cat. 6_A Class E_A up to 500 MHz Data rate: 10 Mbit/s: 100 Mbit/s: 1 Gbit/s: 10 Gbit/s Flammability acc. to UL 94: V-0

SKINTOP ST PG 13,5, Prensaestopas gris RAL 7001

0,74 €

Contacto macho P.soldar 9 con. (N.P2)

1,30 €

Description: D SUB MA STAMPED SOLDER CUP 9P AU2 Application: Cable Connector Gender: Stamped Male Contact Mating Hardware: 3.1 mm hole No. of contacts: 9 Performance level: PL2 RoHS conformity: Yes Termination Type: Solder cup Current: 6 A @ 20°C Net Weight: 5.72 g Series: D-Sub Standard
