Fast Ethernet Ports with/without PoE The RS20 compact OpenRail managed Ethernet switches can accommodate from 4 to 25 port densities and are available with different Fast Ethernet uplink ports – all copper, or 1, 2 or 3 fiber ports. The fiber ports are available in multimode and/or singlemode. Gigabit Ethernet Ports with/without PoE The RS30 compact OpenRail managed Ethernet switches can accommodate from 8 to 24 port densities with 2 Gigabit ports and 8, 16 or 24 Fast Ethernet ports. The configuration includes 2 Gigabit ports with TX or SFP slots. The RS40 compact OpenRail managed Ethernet switches can accommodate 9 Gigabit ports. The configuration includes 4 x Combo Ports (10/100/1000BASE TX RJ45 plus FE/GE-SFP slot) and 5 x 10/100/1000BASE TX RJ45 ports

Type of switch: unmanaged Type of Ethernet: Fast Ethernet Mounting: 35 mm top-hat mounting rail acc. to EN 60 715 Supported standards: IEEE 802.3 PROFINET: Yes EtherNet/IP: Yes Relative humidity, min.: 0 % Relative humidity, max.: 95 % Relative humidity, additional data: non-condensing Protection class, power: III MTBF: ca. 2,160,000 h Support of Jumbo Frames: No Frame Size: 1,522 Quality of service: Yes Energy efficient ethernet: Yes Status & diagnostic indicator, switch port: Link/Act, Speed, Power Non-blocking: Yes Ethernet type, copper: 10BASE-Te// 100BASE-TX EEE Autonegotiation: Yes Auto polarity: Yes Auto-MDI(X): Yes No. of ports, copper: 8 Termination copper: RJ45 (Twisted Pair) Data rate copper: 10 Mbit/s// 100 Mbit/s Cable length, copper, max.: 100 m (Twisted Pair, with cable Category 5 acc. to DIN EN 50 173-1) Status & diagnostic indicator, ethernet port: L/A off: no link L/A off: no link L/A lit green: link is activ L/A flashes green: link is active and data is transferred Speed off: 10 Mbit/s Speed lit yellow: 100 Mbit/s Power over Ethernet: without PoE

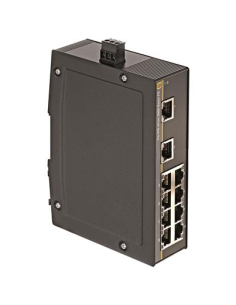

Descripción: Ha-VIS eCon 3100B-A Series of hoods/housings: Ha-VIS eCon 3000 Element: Unmanaged Ethernet Switches Type of Ethernet: Fast Ethernet Total number of ports: 10 Fixing: 35 mm DIN rail acc. to EN 60715: Switching technology Store and Forward: Cut Through Frame size: 1.5 Kilobyte MAC table size: 2k Entries Packet buffer size: 1 Megabit Non blocking: Yes Quality of service: Yes Energie Efficient Ethernet: Yes Broadcast storm prevention: Yes Flow control: Off Signal contact: No Pack contents: Operating instructions and Pluggable screw contact for power supply

Description Entry Level Industrial Ethernet Rail-Switch, store and forward switching mode, Ethernet (10 Mbit/s) and Fast-Ethernet (100 Mbit/s) Type SPIDER II 8TX PoE Port type and quantity 8 x 10/100BASE-TX, 4 x PoE according to IEEE802.3af, TP-cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity

Description: Managed, Industrial Switch DIN Rail, fanless design. Fast Ethernet, Gigabit Uplink type. Enhanced Redundancy (PRP, Fast MRP, HSR). Port type and quantity: 11 Ports in total, thereof Fast Ethernet ports: 8 x 10/100BASE TX / RJ45: therof Uplink ports: 3 x Gigabit Ethernet SFP slots (1000 MBit). Operating temperature: -40 ºC ... 70 ºC

Description: Managed Fast/Gigabit Industrial Ethernet Switch, fanless design, 24x 10/100 Mbit/s Ethernet Ports, 4x 10/100/1000 Mbit/s Ethernet Ports, 4x FE/GE Combo ports Port type and quantity: 4x GE plus 24 FE ports, Ports in total up to 28 Basic unit: 4x FE/GE Combo ports plus 8 FE TX ports expandable with two slots for media modules with 8 FE ports each, 16 fiber ports: 4 GE/FE basic unit plus 12 FE with media modules Operating temperature: -40 ºC ... 70 ºC

Description: Managed Industrial Switch for DIN Rail, fanless design, Fast Ethernet, Gigabit uplink type. Port type and quantity: 12 Ports in total: 8x 10/100BASE TX / RJ45: 4x 100/1000Mbit/s fiber: 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s): 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s) Operating temperature: 0 ºC ... 60 ºC

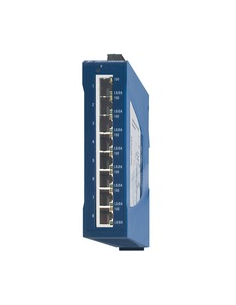

Description: Entry Level Industrial ETHERNET Rail-Switch, store and forward switching mode, Ethernet (10 Mbit/s) and Fast-Ethernet (100 Mbit/s) Type: SPIDER II 8TX EEC Order No: 943 958-001 Port type and quantity: 8 x 10/100BASE-TX, TP-cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity

Description: Entry Level Industrial ETHERNET Rail-Switch, store and forward switching mode, Ethernet (10 Mbit/s) and Fast-Ethernet (100 Mbit/s) Type: SPIDER II 8TX Order No: 943 957-001 Port type and quantity: 8 x 10/100BASE-TX, TP-cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity

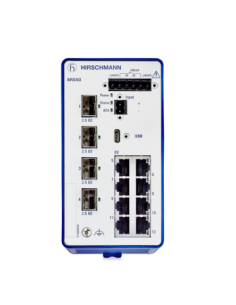

Product : BRS Datarate: 100 & 1000 MBit/s Ethernet Ports Hardware type: Standard Number of FE ports: 8 x 10/100 MBit/s Ethernet Ports Number of GE ports: 4 x 100/1000 Mbit/s Ethernet Ports First uplink (group): 2 x SFP Slot (100/1000 MBit/s) Second uplink (group): 2 x SFP Slot (100/1000 MBit/s) Temperature range: 40°C --> +70°C Voltage range: 2x (12 - 24 VDC) Housing: IP30 Approvals / Declarations Part: CE: FCC: EN61131: EN62368-1 Approvals / Declarations Part: no additional approval
