Conectores I/O

Mostrando 1-30 de 67 artículo(s)

Terminación: IDC

09451511524 HARTING -RJI RJ45 GL Compact plug Cat.6A, 8p (Ud)

Category: Connector Series: HARTING RJ Industrial Element: Cable connector Termination method: Piercing termination Termination method: Piercing termination Shielding: Fully shielded, 360° shielding contact Number of contacts: 8 Package: 1 unit Conductor

Terminación: IDC

09451511100 HARTING -RJI RJ45 plug Cat5, 4p IDC

09451511100

12,36 €

Description: RJI RJ45 plug Cat5, 4p IDC Application: 10/100Mbit Ethernet Cable diameter: 6.0 - 6.9 mm Class of Protection: IP20 Gender: Plug Mating face: RJ45 No. of contacts: 4 RoHS conformity: Yes Termination Type: IDC Type: RJ45 / Cat.5 Curre

Terminación: IDC

09451511560 HARTING -RJI 10G RJ45 plug Cat6, 8p IDC straight

09451511560

20,23 €

Description: RJI 10G RJ45 plug Cat6, 8p IDC straight Application: 1/10GBit Ethernet//10/100Mbit Ethernet Cable diameter: 4.5 - 9.0 mm Class of Protection: IP20 Gender: Plug Mating face: RJ45 No. of contacts: 8 RoHS conformity: Yes Termination Type

Terminación: IDC

09451151100 HARTING -RJI IP67 DATA 3A PLUG METAL COMP

09451151100

38,45 €

Description: Han3A RJ45 Cat5 plug 4p IDC Application: //10/100Mbit Ethernet//10/100Mbit Ethernet Cable diameter: 6.5 - 9.5 mm Class of Protection: IP65 / IP67 Gender: Plug Mating face: RJ45 No. of contacts: 4 RoHS conformity: Yes Termination Type:

D-SUB

09672094715 HARTING -Conector hermbra 9V soldar ctos.

09672094715

2,98 €

Description: D SUB FE STAMPED SOLDER CUP 9P AU2 Application: Cable Connector Gender: Stamped Female Contact Mating Hardware: 3.1 mm hole No. of contacts: 9 Performance level: PL2 RoHS conformity: Yes Termination Type: Solder cup Current: 6 A @ 20°

Metálico

09561005604 HARTING -D SUB HD MA 15P SOLDER CUP PL3

09561005604

2,50 €

Description:D SUB HD MA 15P SOLDER CUP PL3 Application:Cable Connector Gender:Stamped Male Contact No. of contacts:15 Performance level: PL3 RoHS conformity:Yes Termination Type:Solder cup Net Weight:4.3 g Series:D-Sub High Density

D-SUB

09672095615 HARTING -D SUB MA STAMPED SOLDER CUP 9P AU2

09672095615

2,53 €

Description: D SUB MA STAMPED SOLDER CUP 9P AU2 Application: Cable Connector Gender: Stamped Male Contact Mating Hardware: 3.1 mm hole No. of contacts: 9 Performance level: PL2 RoHS conformity: Yes Termination Type: Solder cup Current: 6 A @ 20°C

Conexión: Tornillo

09120009958 HARTING -Conector RJ45 AWG24-26

09120009958

4,34 €

Description: RJ45 Plug Gender: male Mechanical working life - mating cycles: >= 500 Series: Han-Modular® Limiting temperature, min.: -40 °C Limiting temperature, max.: 70 °C Specification: Cat. 5e Number of contacts: 8 Cord diameter, max.: 0.99 m

Terminación: IDC

09352260401 HARTING -Han PP RJ45 pn metal plug set

09352260401

50,74 €

Connectors, IDC termination, Rated current: ?1.75 A, Contacts: 4, PushPull, Material: Zinc die-cast, Nickel plated, Degree of protection: IP65, IP67

Terminación: IDC

09452451102 HARTING -Conector ETHERNET PUSH PULL IP67 Panel

09452451102

13,23 €

Description: HPP V4 RJ45 Cat5 C-PFT 8p Application: 1Gbit Ethernet //10/100Mbit Ethernet Class of Protection: IP65 / IP67 Gender: Jack Mating face: RJ45 No. of contacts: 8 RoHS conformity: Yes Termination Type: RJ45 plug Type: RJ45 / Cat.5 Curren

Conexión: Tornillo

09140014721 HARTING -HAN Modular RJ45 hembra

09140014721

36,80 €

Description: Han RJ45 module, female gender changer Gender: female Mechanical working life - mating cycles: >= 500 RoHS conformity: Yes Transmission characteristics: Category 6 / Class E up to 250 MHz, according to ISO/IEC 11 801:2002 and EN 50 173-1

Terminación: IDC

09455451560 HARTING -RJI RJ45 10G Cat6, 8p IP20 coupler

09455451560

12,51 €

RJI RJ45 10G Cat6, 8p IP20 coupler Coupler, RJ45, Contacts: 8

Terminación: IDC

09455451562 HARTING -RJI RJ45 10G Cat.6, 8p jack IDC AWG24-22

09455451562

10,81 €

RJI RJ45 10G Cat.6, 8p jack IDC AWG24-22

Entrada: Recta

09670090348 HARTING -Carcasa metalica D-SUB E/Superior T.M3

09670090348

8,18 €

D Sub top entry metal hood 9 pole with g

Har Port

09454521509 HARTING -HAR-PORT RJ 45 Adaptador CAT. 6 1M.

09454521509

43,44 €

Description: har-port RJ45 Cat.6: PFT 1,0m cable Application:1/10GBit Ethernet///10/100Mbit Ethernet Class of Protection: IP20 Gender:Jack Mating face:RJ45 No. of contacts:8 RoHS conformity:Yes Termination Type:RJ45 plug Type:RJ45 / Cat.6 Current: 1.5 A R

RJ Industrial Ethernet

AX104562 BELDEN - Conector RJ45 Hembra apantallado KeyConnect, CAT6A

AX104562

10,96 €

Modular Connectors - 10GX Shielded KeyConnect Modular Jack

Terminación: IDC

09452451561 HARTING -PushPull V4 PFT, 10G, Cat.6A, 8-pin

09452451561

14,96 €

PushPull V4 PFT, 10G, Cat.6, 8-pin

Terminación: IDC

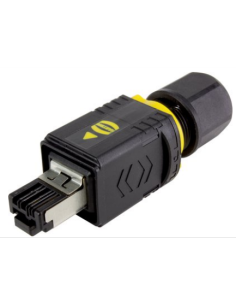

09451451106 HARTING -PushPull V4 plug, RJ45, Cat.5

09451451106

19,55 €

PushPull V4 plug, RJ45, Cat.5 Connector set, IDC termination, Contacts: 4, Conductor cross-section: 0.22 ... 0.32 StrandedStranded, 0.26 ... 0.32 SolidSolid

Conexión: Soldar

09350043004 HARTING -Han PushPull Power L-male, 180°

09350043004

2,16 €

Category: Connector Series: Han® PushPull Identification: L Power Element: Male Specification: Straight Termination method : Solder termination Locking type: PushPull Number of contacts : 4 PE contact: Yes Electrical data acc. to IEC 61984: 16 A 24 V 4 k

Terminación: IDC

09454001100 HARTING -Han-Modular RJ45 Cat5 plug 4p IDC

09454001100

15,78 €

Description: Han-Modular RJ45 Cat5 plug 4p IDC Gender: male Mechanical working life - mating cycles: >= 500 Terminal method, cable, copper: IDC contacts Category 5 / Class D up to 100 MHz, according to ISO/IEC 11 801:2002 and EN 50 173-1 Series: Han

Terminación: IDC

09452151560 HARTING -RJI Han 3A RJ45 PFT Cat. 6A metal

09452151560

33,86 €

Description: Han3A RJ45 10G Cat6 PFT 8p Application: 1/10GBit Ethernet//10/100Mbit Ethernet Class of Protection: IP65 / IP67 Gender: Jack Mating face: RJ45 No. of contacts: 8 RoHS conformity: Yes Termination Type: RJ45 plug Type: RJ45 / Cat.6 Cu

Terminación: IDC

09451511141 HARTING -RJI MF-PN RJ45 plug Cat5, 4p IDC angled

09451511141

21,95 €

RJI MF-PN RJ45 plug Cat5, 4p IDC angled

Conector 1: Recto

09352250401 HARTING -Han PP RJ45 10G metal plug set

09352250401

51,73 €

Descripción: Han PP RJ45 10G metal plug set Identification: RJ45 Element: Connector set Termination method: IDC termination Locking type: PushPull Shielding: Fully shielded, 360° shielding contact Number of contacts: 8 Pack contents: incl. housing and mal

Terminación: Piercing

09451151520 HARTING -Han3A RJ45 GL Cat6A plug 8p met

09451151520

33,44 €

Descripción: Han3A RJ45 GL Cat6A plug 8p met Series: RJ45 Termination method : Piercing termination Size HOOD: Han® 3 A Shielding: Fully shielded, 360° shielding contact Number of contacts: 8 Pack contents: Cable gland//Assembly instructions//Connector in

Carcasa Plástica

09670090343 HARTING -CAPOTA METALICA DSUB 9 VIAS RECTA

09670090343

8,79 €

Description: D-Sub hood 09-pole top entry full metal Application: Hood Combination: Cable to Board Mating Hardware: Knurled Jack Screws 4-40 No. of contacts: Size 1 (E) RoHS conformity: Yes Termination Type: Grommet Type: Metal usage on ...-side:

Carcasa Plástica

09145451120 HARTING -Han-Mod RJ45 IDC cable jack 4P AWG 24-22

09145451120

25,26 €

Description:Han-Mod RJ45 IDC cable jack 4P AWG 24-22 Gender:female Mechanical working life - mating cycles:>= 500 Terminal method, cable, copper:IDC contacts Series:Han-Modular® Limiting temperature, min.:-40 °C Limiting temperature, max.:70 °C Specificat

Terminación: IDC

09452151103 HARTING -RJ45, Base HAN 3A Metal IP67 Tapa

09452151103

53,52 €

Description: Han3A RJ45 Cat5 PFT 8p with cover Application: 1Gbit Ethernet//10/100Mbit Ethernet Panel feed through Class of Protection: IP65 / IP67 Gender: Female Mating face: RJ45 No. of contacts: 8 RoHS conformity: Yes Termination Type: RJ45 plug

Terminación: IDC

09452151100 HARTING -RJ45 IP67, Base Panel Metálico Cat. 5

09452151100

27,69 €

Description: Han3A RJ45 Cat5 PFT 8p Application: 1Gbit Ethernet//10/100Mbit Ethernet Class of Protection: IP65 / IP67 Gender: Jack Mating face: RJ45 No. of contacts: 8 RoHS conformity: Yes Termination Type: RJ45 plug Type: RJ45 / Cat.5 Current: 1

Montaje: Panel

09140009933 HARTING -D-Sub Modul without. D-Sub insert-Female

09140009933

20,55 €

Description: Adapter module w/o D-Sub, female -2cable Gender: female Mechanical working life - mating cycles: >= 500 RoHS conformity: Yes Series: Han-Modular® Limiting temperature, min.: -40 °C Limiting temperature, max.: 125 °C Colour, insert: RAL

Han Pushpull

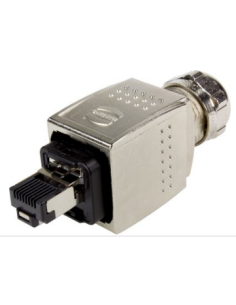

09352210401 HARTING -HAN PUSH PULL RJ45 CAT. 5

09352210401

30,40 €

Han PP metal V14 RJ45 Cat5 plug 4p IDC Connector, IDC termination, Rated current: 1.75A, Contacts: 4, PushPull, Material: Zinc die-cast, Nickel plated, Degree of protection: IP65, IP67
