SEK-18 SV MA STD STR29 RLG 26P PL3 Connector, Male connector, Wave soldering termination, Rated current: 1 A, Contacts: 26, Straight, Performance level: 3, Thermoplastic resin (PBT), Grey

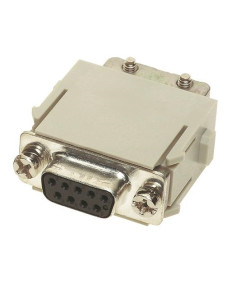

Description: Han D-Sub module, crimp female Gender: female Mechanical working life - mating cycles: >= 500 RoHS conformity: Yes Series: Han-Modular® Limiting temperature, min.: -40 °C Limiting temperature, max.: 125 °C Termination method: Crimp terminal Number of contacts: 9 Rated current: 5 A Rated voltage: 50 V Rated impulse voltage: 0.8 kV Pollution degree: 3 Contact identification, min.: 1 Contact identification, max.: 9 Wire cross section, min.: 0.08 mm2 Wire cross section, max.: 0.52 mm2 Colour, insert: RAL 7032 (light grey) Material, insert: polycarbonate Material, shielding element: zinc die-cast alloy Net Weight: 29.8 g Type of module: Han® D-Sub module Flammability insert acc. to UL 94: V 0 Rated voltage acc. to UL: 30 V Approval UL: Yes Approval GL: Yes Specification: IEC 60664-1//IEC 61984 Insulation resistance: >= 10 Ohm Exponent: 10

Description: Adapter module for D-Sub, male - 1 cable Gender: male Mechanical working life - mating cycles: >= 500 RoHS conformity: Yes Series: Han-Modular® Limiting temperature, min.: -40 °C Limiting temperature, max.: 125 °C Colour, insert: RAL 7032 (light grey) Material, insert: polycarbonate Net Weight: 26 g Type of module: Adapter module Type of module, amendment: for one cabel//for 9-pin D-Sub Flammability insert acc. to UL 94: V 0 Approval UL-CSA: Yes Approval GL: Yes Specification: IEC 61984//IEC 61984 Insulation resistance: >= 10 Ohm Exponent: 10 Protective earth conductor (PE): Yes
