M12

Mostrando 1-24 de 24 artículo(s)

26132 LUMBERG-RKFM 5/0,5M, Conector

Codificación A

26132 LUMBERG-RKFM 5/0,5M, Conector

Type: RKFM 5/0,5 M Description : Receptacle connector, for front mounting, M12 female connector, assembled stranded wire, solder contacts potted with epoxy, 5 poles, A coding, chassis side thread M16 x 1.5 (panel nut RSKFM 16). No Incluye tuerca ref. 25049

54217 LUMBERG-FWD 5B, Conector

Conector 2: Recto

54217 LUMBERG-FWD 5B, Conector

Receptacle connector, M12 male connector to M12 female connector – especially designed for use as panel feed through –, 5 poles, B coding (suitable for PROFIBUS)

26129 LUMBERG-RKFM 4/0,5M, Conector

Codificación A

26129 LUMBERG-RKFM 4/0,5M, Conector

Type: RKFM 4/0,5 M Description: Receptacle connector, for front mounting, M12 female connector, assembled stranded wire, solder contacts potted with epoxy, 4 poles, A coding, chassis side thread M16 x 1.5 (panel nut RSKFM 16). No Incluye tuerca ref. 25049

26148 LUMBERG-RSFM 5/20/0,5M, Conector

Codificación A

26148 LUMBERG-RSFM 5/20/0,5M, Conector

Terminal: assembled with stranded wire Kind: male receptacle Orientation: straight Size Code: M12 Operating Voltage: = 63 V Operating Voltage (Nom.): 60 V Operating Current (Nom.): 4 A Operating Temperature: -25 °C - 80 °C Colour: blank Thread: M20 x 1.5 Length: 50 cm Strands Diameter: 4 x 0.34 mm² / 1 x 0.50 mm² Material (Housing): brass, nickel plated...

26145 LUMBERG-RSFM 4/20/0,5M, Conector

Codificación A

26145 LUMBERG-RSFM 4/20/0,5M, Conector

Receptacle connector, for front mounting, M12 male connector, assembled stranded wire, solder contacts potted with epoxy, 4 poles, A coding, chassis side thread M20 x 1,5 (panel nut RSKFM 20). No se incluye tuerca Referencia RSKFM 20(25048)

11638 LUMBERG-RSF 8/0,5M, Conector

Codificación A

11638 LUMBERG-RSF 8/0,5M, Conector

Receptacle, 8-pole, male, M12 for front mounting, 24 and 22 AWG, panel mount thread PG9, 0.5 meter leads. No Incluye tuerca ref. 25049

26152 LUMBERG-RSFM 8/20/0,5 M, Conector

Codificación A

26152 LUMBERG-RSFM 8/20/0,5 M, Conector

M12 Receptacle connector, combined FIXCON/M12 male connector for front mounting, assembled stranded wire, solder contacts potted with epoxy, chassis side thread M20 x 1.5 (panel nut not included RSKFM 20 - part number 25048).

46002 LUMBERG-PRSFM 5, Conector

Codificación A

46002 LUMBERG-PRSFM 5, Conector

Type: PRSFM 5 Description: Receptacle connector, for front mounting, male connector, solder connections, housing of stainless steel, (especially designed for use in food processing equipment), solder contacts not potted, chassis side thread M16 x 1.5 (panel nut RSKFM 16), 5 poles, A coding. No Incluye tuerca ref. 25049

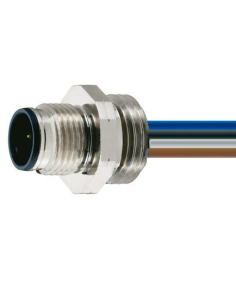

26144 LUMBERG-RSFM 4/0,5M, Conector

Codificación A

26144 LUMBERG-RSFM 4/0,5M, Conector

Type: RSFM 4/0,5 M Description: Receptacle connector, for front mounting, M12 male connector, assembled stranded wire, solder contacts potted with epoxy, 4 poles, A coding, chassis side thread M16 x 1.5 (panel nut RSKFM 16). No Incluye tuerca ref. 25049

18317 LUMBERG-0976 PFC 151, Conector

Codificación B

18317 LUMBERG-0976 PFC 151, Conector

Receptacle connector, for front mounting, assembled stranded wire (0.5 m), solder contacts potted with epoxy, with adjustable nut, 5 poles, B coding:especially suitable for Profibus, M12 female connector, chassis side thread M16 x 1.5

18315 LUMBERG-0976 PMC 151, Conector

Codificación B

18315 LUMBERG-0976 PMC 151, Conector

Receptacle connector, for front mounting, assembled stranded wire (0.5 m), solder contacts potted with epoxy, with adjustable nut, 5 poles, B coding:especially suitable for Profibus, M12 male connector, chassis side thread M16 x 1.5

027812 PEPPERL+FUCHS -V1-PG9-Y27812, Conector

Entrada de Cable: PG9

027812 PEPPERL+FUCHS -V1-PG9-Y27812, Conector

Adaptador de montaje M12/PG9 de 4 polos, modelo de plástico

50617 LUMBERG-RKFM 5/20/0,5M, Conector

Codificación A

50617 LUMBERG-RKFM 5/20/0,5M, Conector

Conector empotrable, conector hembra combinado FIXCON/M12 para montaje frontal, confeccionado con hilo múltiple para conexiones, área de fijacción de conductores sellada, unión atornillada M20 x 1,5 en el lado empotrable fijación con RSKFM 20. 5 polos. 0,5 metros. No se incluye tuerca Referencia RSKFM 20(25048)

26146 LUMBERG-RSFM 5/0,5M, Conector

Codificación A

26146 LUMBERG-RSFM 5/0,5M, Conector

Type: RSFM 5/0,5 M Description: Receptacle connector, for front mounting, M12 male connector, assembled stranded wire, solder contacts potted with epoxy, 5 poles, A coding, chassis side thread M16 x 1.5 (panel nut RSKFM 16). No se incluye la tuerca ref. RSKFM 16

26134 LUMBERG-RKFM 8/0,5M, Conector

Codificación A

26134 LUMBERG-RKFM 8/0,5M, Conector

Type: RKFM 8/0,5 M Description: Receptacle connector, for front mounting, M12 female connector, assembled stranded wire, solder contacts potted with epoxy, 8 poles, A coding, chassis side thread M16 x 1.5 (panel nut RSKFM 16). No Incluye tuerca ref. 25049

26151 LUMBERG-RSFM 8/0,5M, Conector

Codificación A

26151 LUMBERG-RSFM 8/0,5M, Conector

Receptacle connector, for front mounting, M12 male connector, assembled stranded wire, solder contacts potted with epoxy, 8 poles, A coding, chassis side thread M16 x 1.5 (panel nut RSKFM 16). No Incluye tuerca ref. 25049

56332 LUMBERG-RSHL 4/S 5,5, Conector

Codificación A

56332 LUMBERG-RSHL 4/S 5,5, Conector

Receptacle connector, for rear mounting, M12 male connector, print contacts, chassis side thread PG 9 (panel nut RSKF 9), 4 poles, A coding

45740 LUMBERG-PRKFM 4/0,5 M, Conector

Conector 1: Recto

45740 LUMBERG-PRKFM 4/0,5 M, Conector

Receptacle connector, for front mounting, housing of stainless steel (especially designed for use in food processing equipment), M12 female connector, assembled stranded wire, solder contacts potted with epoxy, 4 poles, A coding, Lead 4 x AWG 22, chassis side thread M16 x 1.5 (panel nut RSKFM 16). No se incluye la tuerca Ref. RSKFM 16

47297 LUMBERG-PRSFM 8/0,5 M, Conector

Codificación A

47297 LUMBERG-PRSFM 8/0,5 M, Conector

Conector M12, 8 polos, codificación A, encapsulado

45741 LUMBERG-PRKFM 5/ 0,5M, Conector

Codificación A

45741 LUMBERG-PRKFM 5/ 0,5M, Conector

Type: PRKFM 5/0,5 M Description: Receptacle connector, for front mounting, housing of stainless steel (especially designed for use in food processing equipment), M12 female connector, assembled stranded wire, solder contacts potted with epoxy, 5 poles, A coding, Lead 1 x 0.5 mm², 4 x AWG 22, chassis side thread M16 x 1.5 (panel nut RSKFM 16)

26433 LUMBERG-0936 DFC 351, Conector

Codificación A

26433 LUMBERG-0936 DFC 351, Conector

Receptacle connector, for front mounting, assembled stranded wire (0.5 m), solder contacts potted with epoxy, with adjustable nut, 5 poles, A coding: especially suitable for DeviceNet and CANopen, M12 female connector, chassis side thread M16 x 1.5. No Incluye tuerca ref. 25049

934164106 LUMBERG-ECM 412 FA

Fuera de stock. Póngase en Contacto con nosotros para conocer el plazo de disponibilidad de este producto

Carcasa Plástica

934164106 LUMBERG-ECM 412 FA

M12 Standard Sensor/Actuator Receptacle Connector: Male, flange mount, M12 - mating side, solder contacts - connecting side, 4-pin, A-coded, unshielded, grey body, 150 V AC/DC, 4 A

View

26130 LUMBERG-RKFM 4-3/0,5M, Conector

Fuera de stock. Póngase en Contacto con nosotros para conocer el plazo de disponibilidad de este producto

Codificación A

26130 LUMBERG-RKFM 4-3/0,5M, Conector

Conector M12 Hembra 3 pines, panel, con 0,5m

View

25023 LUMBERG-RSFM 4, Conector

Fuera de stock. Póngase en Contacto con nosotros para conocer el plazo de disponibilidad de este producto

Codificación A

25023 LUMBERG-RSFM 4, Conector

Receptacle connector, for front mounting, male connector, solder connections, chassis side thread M16 x 1.5 (panel nut RSKFM 16), 4 poles, A coding. No Incluye tuerca ref. 25049

View
