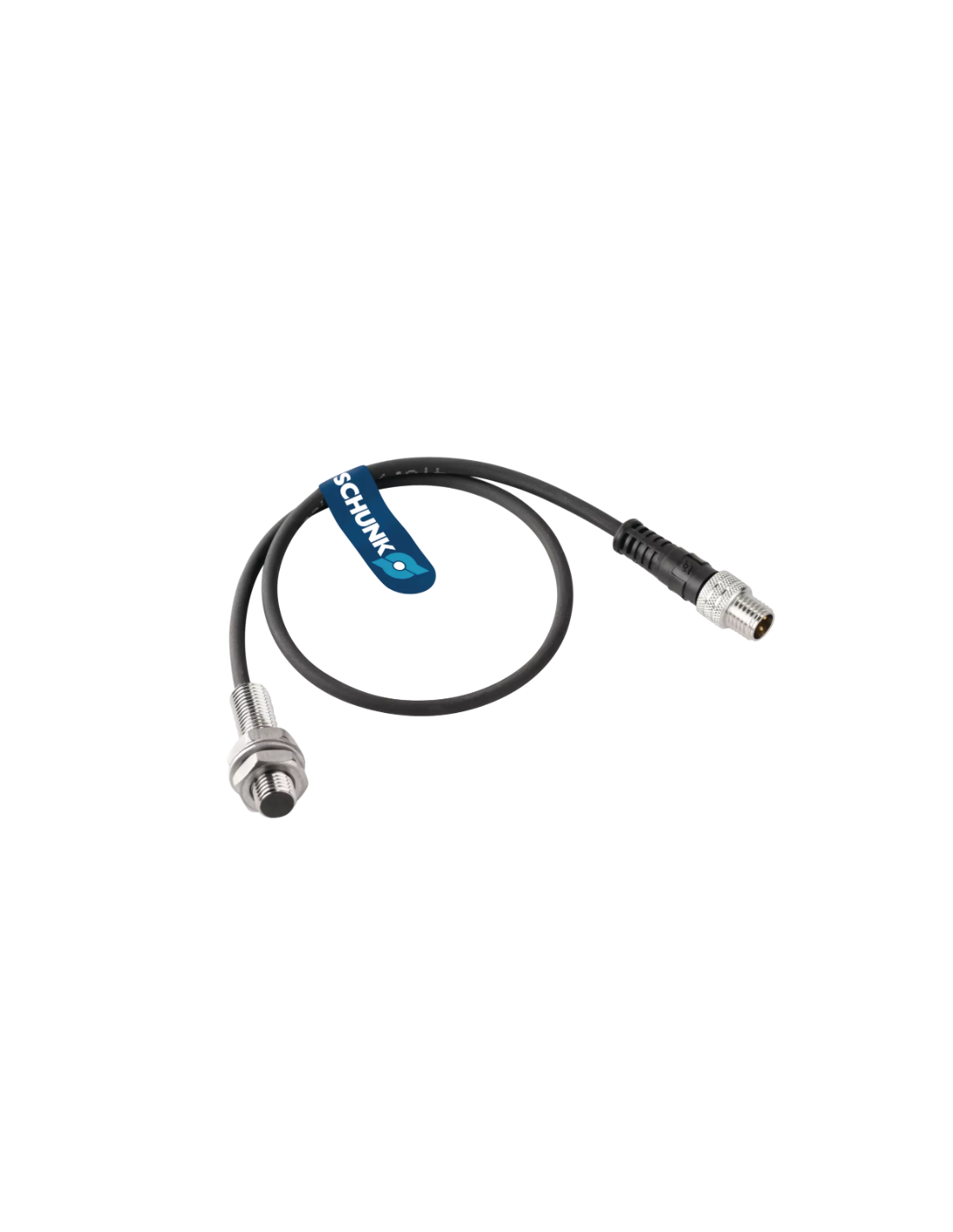

IN 80-O-M12 (301588), Detector SCHUNK

Technical data IN 80-0-M12 Ident.-Nr. :0301588 Switching function :Opener Type of switching :PNP Switching distance [mm] :1.5 Switching hysterisis from the nominal switching distance < 15% Max. switching frequency [Hz] : 3000 Product weight [kg] :0.08 min. ambient temperature [°C] :-25 max. ambient temperature [°C] :70 Tightness IP (sensor) :67 Tightness IP (sensor, connected) :67 LED display in sensor :yes Type of voltage :DC Nominal voltage [V] :24 Min. voltage [V] :10 max. voltage [V] :30 Voltage drop [V] :1.5 Max. switching current [A] :0.2 Cable diameter D [mm] :3.5 Min. bending radius (dynamically) [mm] :35 Min. bending radius (statically) [mm] :17.5 Number of wires :3 Wire cross section [mm²] :0.14 Cable length L [cm] :30 Cable connector/cable end :M12
